Product Detials
FS 400

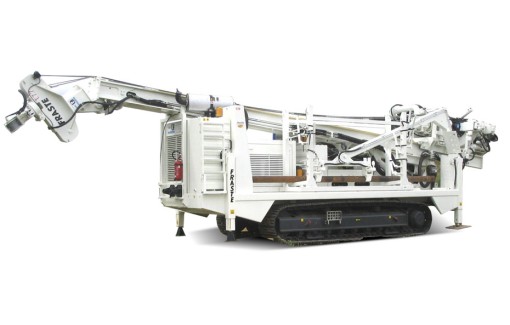

The FS 400 is a powerful, heavy-duty drilling rig built for multi-purpose deep drilling, coring, and seismic applications.
The FS 400 is a robust and highly reliable heavy-duty drilling rig meticulously developed for versatile, high-capacity operations. Engineered to support multiple drilling techniques—including direct or reverse fluid circulation, dry auger, and DTH air drilling—this unit is perfectly suited for deep water wells, geothermal drilling, surface soil exploration, and seismic coring. It is structurally designed to handle massive pulling capacities and torque, frequently integrated with advanced automatic pipe handling systems for enhanced operational safety.
Key Specifications: - Power: CAT - Stage V - Tier 4F - 280-563 kw (380-765 Hp) / CAT / FPT Stage IIIA - Tier 3 - 260-470 kw (349-630 Hp) - Rotary head stroke: 6700-7600 mm (22-25 ft) - Pull-up: 28000 daN (62946 lbf) - Max rotary head torque: 3270 daNm (24118 ft lbf) - Rated drilling capacity: 600 mt (1968 ft)
Power: CAT - Stage V - Tier 4F - 280-563 kw (380-765 Hp) / CAT / FPT Stage IIIA - Tier 3 - 260-470 kw (349-630 Hp) Rotary head stroke: 6700-7600 mm (22-25 ft) Pull-up: 28000 daN (62946 lbf) Pull-down: 19000 daN (42713 lbf) Max rotary head torque: 3270 daNm (24118 ft lbf) Clamp: Ø 80-520 mm (3,15"-20,5") Rated drilling capacity: 600 mt (1968 ft)
