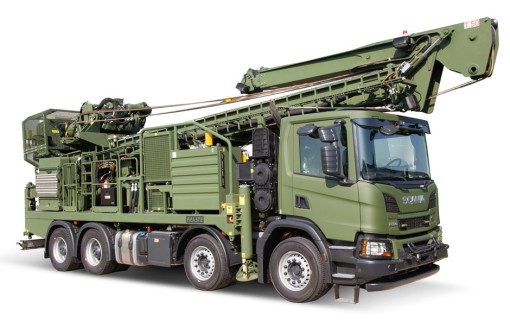

FS 500 T
The FS 500 T is a powerful, heavy-duty drilling rig built for multi-purpose deep drilling, coring, and seismic applications.
Category:
FRASTE
The FS 500 T is a robust and highly reliable heavy-duty drilling rig meticulously developed for versatile, high-capacity operations. Engineered to support multiple drilling techniques—including direct or reverse fluid circulation, dry auger, and DTH air drilling—this unit is perfectly suited for deep water wells, geothermal drilling, surface soil exploration, and seismic coring. It is structurally designed to handle massive pulling capacities and torque, frequently integrated with advanced automatic pipe handling systems for enhanced operational safety.
Key Specifications:
- Power: CAT - Stage V - Tier 4F - 280-563 kw (375-755 Hp) / CAT / FPT - Stage IIIA - Tier 3 - 260-522 Kw (349-700 Hp) / PTO from truck engine
- Rotary head stroke: 7000-8500 mm (23-27,9 ft)
- Pull-up: 45000 daN (101164 lbf)
- Max rotary head torque: 4320 daNm (31862 ft lbf)
- Rated drilling capacity: 900 mt (2952 ft)
Power: CAT - Stage V - Tier 4F - 280-563 kw (375-755 Hp) / CAT / FPT - Stage IIIA - Tier 3 - 260-522 Kw (349-700 Hp) / PTO from truck engine
Rotary head stroke: 7000-8500 mm (23-27,9 ft)
Pull-up: 45000 daN (101164 lbf)
Pull-down: 25000 daN (56202 lbf)
Max rotary head torque: 4320 daNm (31862 ft lbf)
Clamp: Ø 80-520 mm (3,15"-20,5")
Rated drilling capacity: 900 mt (2952 ft)
