Product Detials

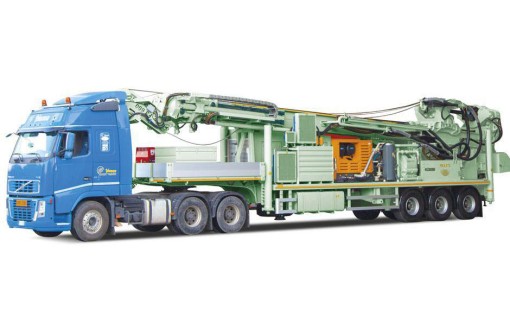

FS 600
The FS 600 is a powerful, heavy-duty drilling rig built for multi-purpose deep drilling, coring, and seismic applications.
Category:
FRASTE
The FS 600 is a robust and highly reliable heavy-duty drilling rig meticulously developed for versatile, high-capacity operations. Engineered to support multiple drilling techniques—including direct or reverse fluid circulation, dry auger, and DTH air drilling—this unit is perfectly suited for deep water wells, geothermal drilling, surface soil exploration, and seismic coring. It is structurally designed to handle massive pulling capacities and torque, frequently integrated with advanced automatic pipe handling systems for enhanced operational safety.
Key Specifications:
- Power: CAT - Stage V - Tier 4F - 280-563 kw (375-755 Hp) / CAT / IVECO Stage IIIA - Tier 3 - 261-522 kw (355-710 Hp)
- Rotary head stroke: 11000 mm (36 ft)
- Pull-up: 60000 daN (134885 lbf)
- Max rotary head torque: 3400 daNm (25077 ft lbf)
- Rated drilling capacity: 1200 mt (3937 ft)
Power: CAT - Stage V - Tier 4F - 280-563 kw (375-755 Hp) / CAT / IVECO Stage IIIA - Tier 3 - 261-522 kw (355-710 Hp)
Rotary head stroke: 11000 mm (36 ft)
Pull-up: 60000 daN (134885 lbf)
Pull-down: 35000 daN (478683 lbf)
Max rotary head torque: 3400 daNm (25077 ft lbf)
Clamp: Ø 80-520 mm (3,15"-20,5")
Rated drilling capacity: 1200 mt (3937 ft)
