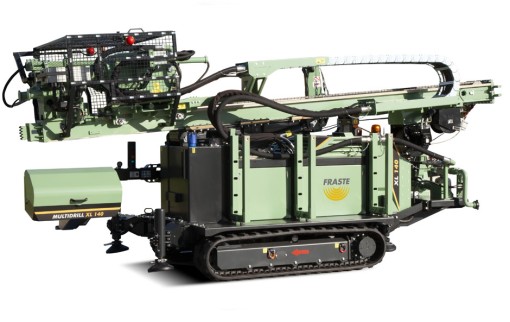

XL 140
The XL 140 is a highly versatile, compact, and powerful drilling rig designed for demanding geotechnical and water well applications.
Category:
FRASTE
The XL 140 represents an exceptional balance of performance and dimension, making it a highly adaptable drilling solution. Engineered with a simple, modular construction and high technological content, this rig can be seamlessly customized to accommodate diverse drilling methodologies. It excels in rigorous professional applications, including soil investigations, geothermal projects, and water well drilling, effectively supporting both direct and reverse fluid circulation, as well as down-the-hole (DTH) hammer operations.
Key Specifications:
- Power: CAT C4.4 - Stage V - Tier 4F - 110 kw (148 Hp) / CAT C4.4 - Stage IIIA - Tier 3 - 106 Kw (142 Hp)
- Rotary head stroke: 3700 - 4500 mm (12 - 14,8 ft)
- Pull-up: 10000 daN (22480 lbf)
- Max rotary head torque: 1800 daNm (13287 ft lbf)
- Weight: ~ 9400 Kg (~ 20723 lb)
Power: CAT C4.4 - Stage V - Tier 4F - 110 kw (148 Hp) / CAT C4.4 - Stage IIIA - Tier 3 - 106 Kw (142 Hp)
Rotary head stroke: 3700 - 4500 mm (12 - 14,8 ft)
Pull-up: 10000 daN (22480 lbf)
Pull-down: 6800 daN (15287 lbf)
Max rotary head torque: 1800 daNm (13287 ft lbf)
Max rotary head speed: 1000 rpm
Clamp: Ø 60-355 mm (2,3"-14")
Weight: ~ 9400 Kg (~ 20723 lb)
