Product Detials

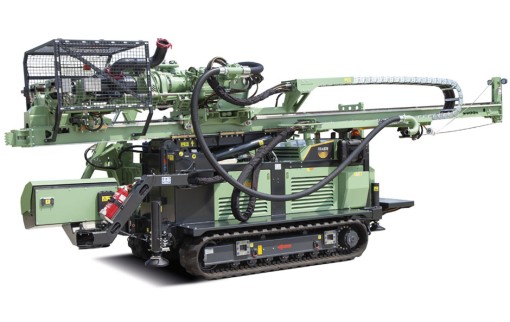

XL 170
The XL 170 is a highly versatile, compact, and powerful drilling rig designed for demanding geotechnical and water well applications.
Category:
FRASTE
The XL 170 represents an exceptional balance of performance and dimension, making it a highly adaptable drilling solution. Engineered with a simple, modular construction and high technological content, this rig can be seamlessly customized to accommodate diverse drilling methodologies. It excels in rigorous professional applications, including soil investigations, geothermal projects, and water well drilling, effectively supporting both direct and reverse fluid circulation, as well as down-the-hole (DTH) hammer operations.
Key Specifications:
- Power: CAT C4.4 - Stage V - Tier 4 - 129,4 kw (173,5 Hp) / CAT C7.1 - Stage IIIA - Tier 3 - 129 Kw (173 Hp)
- Rotary head stroke: 3700 - 4000 - 4500 mm (12 - 13 - 14,8 ft)
- Pull-up: 12000 - 14000 - 18000 daN (26977 - 31473 - 40465 lbf)
- Max rotary head torque: 1860 daNm (13718 ft lbf)
- Weight: ~ 12000 Kg (~ 26455 lb)
Power: CAT C4.4 - Stage V - Tier 4 - 129,4 kw (173,5 Hp) / CAT C7.1 - Stage IIIA - Tier 3 - 129 Kw (173 Hp)
Rotary head stroke: 3700 - 4000 - 4500 mm (12 - 13 - 14,8 ft)
Pull-up: 12000 - 14000 - 18000 daN (26977 - 31473 - 40465 lbf)
Pull-down: 6800 daN (15287 lbf)
Max rotary head torque: 1860 daNm (13718 ft lbf)
Max rotary head speed: 1000 rpm
Clamp: Ø 60-355 mm (2,3"-14")
Weight: ~ 12000 Kg (~ 26455 lb)
