Product Detials

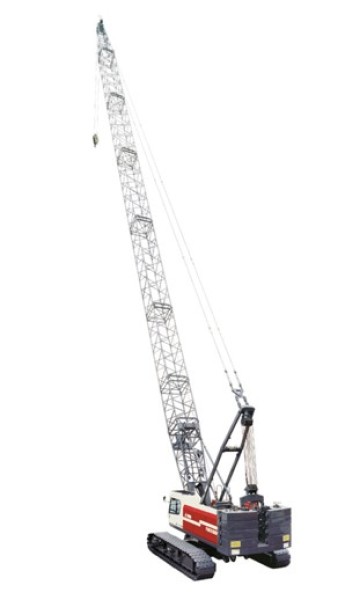

FWX100
100-ton crawler crane with self-assembly system, jack-up cylinders, and advanced diagnostics.
Category:
FUWA
| Features |
| 1.Modular design for optimized performance and efficient maintenance by innovative layout of hydraulic and electric system. |
| 2.High-grade steel boom and machine structures thoroughly engineered and analyzed. |
| 3.High performance winches with 22mm wire rope and optional free fall functions for special applications. |
| 4.Lift-cab; high ergonomics comfort cab, 20% more vision by flat easy maintenance windows, 20% larger door entrance |
| 5.Self-assembly devices for safe and efficient assembly of track frames, counterweights and boom foot. |
| 6.Jack-up cylinders in drop and jack-up style for safe lifting the base machine. |
| 7.Powerful traction and good stability when traveling, even with 100% load |
| 8.logic organized control consoles, with enhanced monitor display, lightning strike protected, GPS locator. |
| 9.Enhanced moment limiter system with multi-function display including machine diagnostics. |
| 10.A solid state-of-art electronic compartment hosts all electric functions in a fix setup for fast checking and maintenance |
| 11.Excellent transport possibilities of the main structure with a width of just 3 meters |
| 12.Multi-configuration and options to serve various markets and applications to meet different requirements. |
| Technical data | ||||
| Item | Unit | Data | ||
| Max.rated lifting capacity | t | 100@3.6m | ||
| Boom length | m | 13～61 | ||
| Fixed jib length | m | 9～18 | ||
| Max. Length of Boom+ Jib | m | 52+18 | ||
| Hook type | t | 100/50/25/9 | ||
| Working speed | Wire rope speed | Main winch hoist and lower(rope dia.Φ22mm) | m/min | 0～130 |
| Aux.winch hoist and lower(rope dia.Φ22mm) | m/min | 0～130 | ||
| Boom hoist and lower(rope dia.Φ18mm) | m/min | 0～60 | ||
| Swing speed | r/min | 0～2.5 | ||
| Traveling speed | Km/h | 0～1.5 | ||
| Reevings | 13 | |||
| Single line pull | t | 8 | ||
| Gradeability | ﹪ | 30 | ||
| Engine | Kw/r/min | 200/2200 (Cummins China) | ||
| Swing radius | mm | 4737 | ||
| Transportation dimension | mm | 11720×3500×3500 | ||
| Crane mass(with basic boom, 100t hook) | t | 93 | ||
| Ground bearing pressure(including basic boom) | Mpa | 0.083 | ||
| Counterweight | t | 29.5 | ||
