FWX100

FWX100

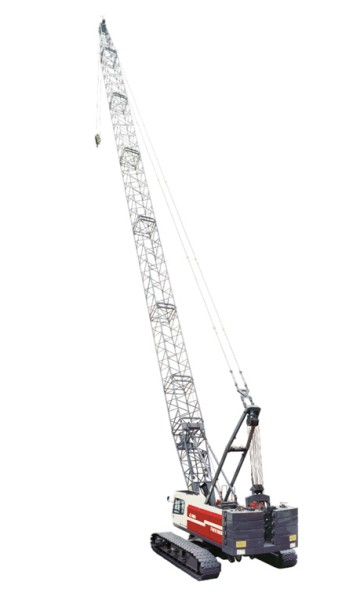

The FWX100 is a high-performance crawler crane featuring modular design, enhanced safety systems, and powerful lifting capabilities.

Category: FUWA
Get a quote
  • Description
  • Specs
  • Technical Data
The FWX100 represents a pinnacle in modern crawler crane engineering, tailored for optimal performance and operational efficiency. It incorporates a fully modular design that ensures efficient maintenance through an innovative layout of hydraulic and electrical systems. The robust construction utilizes high-grade steel for the boom and core machine structures, guaranteeing exceptional durability and powerful lifting capacities. Advanced safety features, including combined moment limiters with real-time machine diagnostics, provide maximum operational security. Additionally, the high-ergonomics lift-cab offers operators superior visibility and comfort, making it the ideal choice for demanding, long-duration lifting projects.
Key Specifications: - Engine: 200/2200 (Cummins China) Kw/r/min - Crane mass(with basic boom, 100t hook): 93 t
Max.rated lifting capacity: 100@3.6m t Boom length: 13～61 m Fixed jib length: 9～18 m Max. Length of Boom+ Jib: 52+18 m Hook type: 100/50/25/9 t Working speed | Wire rope speed | Main winch hoist and lower(rope dia.Φ22mm) | m/min | 0～130 Aux.winch hoist and lower(rope dia.Φ22mm): 0～130 m/min Boom hoist and lower(rope dia.Φ18mm): 0～60 m/min Swing speed - r/min: 0～2.5 Traveling speed: 0～1.5 Km/h Reevings: 13 Single line pull: 8 t Gradeability - ﹪: 30 Engine: 200/2200 (Cummins China) Kw/r/min Swing radius: 4737 mm Transportation dimension: 11720×3500×3500 mm Crane mass(with basic boom, 100t hook): 93 t Ground bearing pressure(including basic boom): 0.083 Mpa Counterweight: 29.5 t
