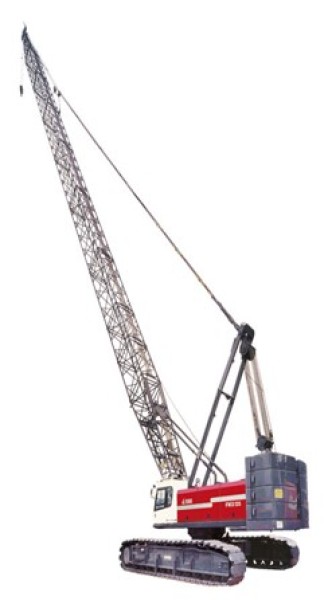

FWX135
135-ton crawler crane designed for heavy-duty applications, containerized transport, and luffing jib configurations.
Category:
FUWA
| Features |
| 1.Modular design for optimized performance and efficient maintenance by innovative layout of hydraulic and electric system. |
| 2.High-grade steel boom and machine structures thoroughly engineered and analyzed. |
| 3.High performance winches with 22 or 26mm wire rope and optional free fall functions for special applications. |
| 4.Lift-cab; high ergonomics comfort cab, 20% more vision by flat easy maintenance windows, 20% larger door entrance |
| 5.Self-assembly devices for safe and efficient assembly of track frames, counterweights and boom foot. |
| 6.Jack-up cylinders in drop and jack-up style for safe lifting the base machine. |
| 7.Powerful traction and good stability when traveling, even with 100% load |
| 8.Logic organized control consoles, with enhanced monitor display, lightning strike protected, GPS locator. |
| 9.Enhanced moment limiter system with multi-function display including machine diagnostics. |
| 10.A solid state-of-art electronic compartment hosts all electric functions in a fix setup for fast checking and maintenance. |
| 11.Excellent transport possibilities of the main structure with a width of just 3 meters |
| 12.Main boom inserts of 3m, 6m and 11.6m allow containerized transport. |
| 13.Multi-configuration and options to serve various markets and applications to meet different requirements. |
| Technical data | ||||
| Items | Unit | Data | ||
| Max. Rated Lifting Capacity | t | 135@5m | ||
| Main Boom Length | m | 18-75 | ||
| Fly Jib Length | m | 13-31 | ||
| Main Boom + Fly Jib Max. Length | m | 63+31 | ||
| Main Boom +Luffing jib Max. Length | m | 48.5+49 | ||
| Boom derricking angle | ° | 30-86 | ||
| Hook Blocks | t | 135/80/25/15 | ||
| Working Speed | Rope speed | Main Winch Hoist, Lower (Rope Dia.￠26mm) | m/min | 0-120 |
| Aux. Winch Hoist, Lower (Rope Dia.￠26mm) | m/min | 0-120 | ||
| Boom Hoist, lower (Rope Dia.￠22mm) | m/min | 0-48 | ||
| Swing Speed | r/min | 0-2.73 | ||
| Travel Speed | km/h | 0-0.78/0-1.15 | ||
| Reevings | 12 | |||
| Single Line Pull | t | 12.5 | ||
| Gradeability | % | 30 | ||
| Engine | Kw/r/min | 209/2000 (export) | ||
| 225/2000 (domestic) | ||||
| Swing Radius | mm | 5530 | ||
| Transport Dimension | mm | 13680x3300x3330 | ||
| Crane Mass (With Basic Boom, 55t hook) | t | 132 | ||
| Ground Bearing Pressure | Mpa | 0.08 | ||
| Counterweight | t | 53.5 | ||
