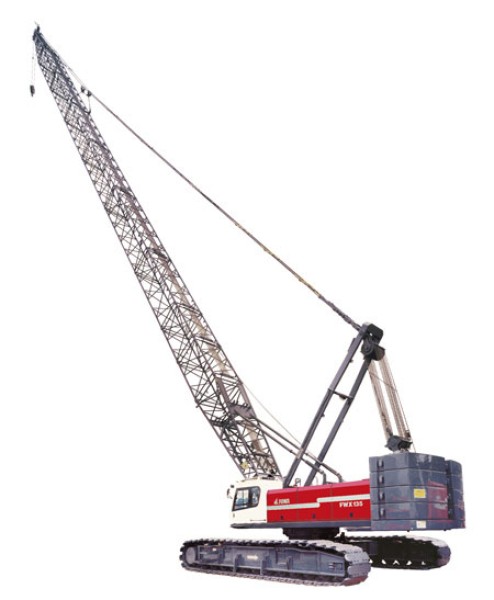

FWX135
The FWX135 is a high-performance crawler crane featuring modular design, enhanced safety systems, and powerful lifting capabilities.
Category:
FUWA
The FWX135 represents a pinnacle in modern crawler crane engineering, tailored for optimal performance and operational efficiency. It incorporates a fully modular design that ensures efficient maintenance through an innovative layout of hydraulic and electrical systems. The robust construction utilizes high-grade steel for the boom and core machine structures, guaranteeing exceptional durability and powerful lifting capacities. Advanced safety features, including combined moment limiters with real-time machine diagnostics, provide maximum operational security. Additionally, the high-ergonomics lift-cab offers operators superior visibility and comfort, making it the ideal choice for demanding, long-duration lifting projects.
Key Specifications:
- Max. Rated Lifting Capacity: 135@5m t
- Engine: 209/2000 (export) Kw/r/min
- Crane Mass (With Basic Boom, 55t hook): 132 t
Max. Rated Lifting Capacity: 135@5m t
Main Boom Length: 18-75 m
Fly Jib Length: 13-31 m
Main Boom + Fly Jib Max. Length: 63+31 m
Main Boom +Luffing jib Max. Length: 48.5+49 m
Boom derricking angle: 30-86 °
Hook Blocks: 135/80/25/15 t
Working Speed | Rope speed | Main Winch Hoist, Lower (Rope Dia.￠26mm) | m/min | 0-120
Aux. Winch Hoist, Lower (Rope Dia.￠26mm): 0-120 m/min
Boom Hoist, lower (Rope Dia.￠22mm): 0-48 m/min
Swing Speed - r/min: 0-2.73
Travel Speed: 0-0.78/0-1.15 km/h
Reevings: 12
Single Line Pull: 12.5 t
Gradeability: 30 %
Engine: 209/2000 (export) Kw/r/min
225/2000 (domestic)
Swing Radius: 5530 mm
Transport Dimension: 13680x3300x3330 mm
Crane Mass (With Basic Boom, 55t hook): 132 t
Ground Bearing Pressure: 0.08 Mpa
Counterweight: 53.5 t
