Product Detials

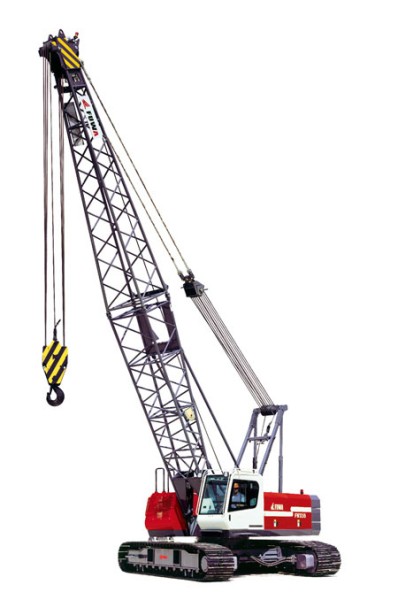

FWX55
The FWX55 is a high-performance crawler crane featuring modular design, enhanced safety systems, and powerful lifting capabilities.
Category:
FUWA
The FWX55 represents a pinnacle in modern crawler crane engineering, tailored for optimal performance and operational efficiency. It incorporates a fully modular design that ensures efficient maintenance through an innovative layout of hydraulic and electrical systems. The robust construction utilizes high-grade steel for the boom and core machine structures, guaranteeing exceptional durability and powerful lifting capacities. Advanced safety features, including combined moment limiters with real-time machine diagnostics, provide maximum operational security. Additionally, the high-ergonomics lift-cab offers operators superior visibility and comfort, making it the ideal choice for demanding, long-duration lifting projects.
Key Specifications:
- Max. Rated Lifting Capacity: 55@3.5m t
- Engine: 142/2000 (export) Kw/r/min
- Crane Mass (With Basic Boom, 55t hook): 50 t
Max. Rated Lifting Capacity: 55@3.5m t
Main Boom Length: 13-52 m
Fly Jib Length: 9.15-15.25 m
Main Boom + Fly Jib Max. Length: 43+15.25 m
Boom derricking angle: 30-80 °
Hook Blocks: 55/15/6 t
Working Speed | Rope speed | Main Winch Hoist, Lower (Rope Dia.￠20mm) | m/min | 0-110
Aux. Winch Hoist, Lower (Rope Dia.￠20mm): 0-110 m/min
Boom Hoist, lower (Rope Dia.￠16mm): 0-60 m/min
Swing Speed - r/min: 0-3.1
Travel Speed: 0-1.33 km/h
Reevings: 8
Single Line Pull: 6.1 t
Gradeability: 30 %
Engine: 142/2000 (export) Kw/r/min
132/1950 (domestic)
Swing Radius: 4100 mm
Transport Dimension: 12100x3300x3300 mm
Crane Mass (With Basic Boom, 55t hook): 50 t
Ground Bearing Pressure: 0.07 Mpa
Counterweight: 16+2 t
