FWX85

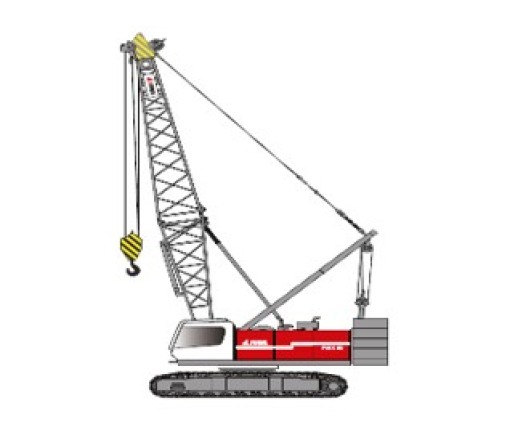

The FUWA FWX85 is an 85-ton metric hydraulic crawler crane designed for lifting and construction tasks.
Category:
FUWA
The FUWA FWX85 is an 85-ton metric hydraulic crawler crane designed for lifting and construction tasks, featuring a lattice boom system. Produced between 2017 and 2026, it offers a maximum standard boom length of 58m.
| Item | Unit | Value |
| Max boom length | m | 58 m |
| Boom + fly jib length | m | 58 + 18 = 76 m |
| Boom hoist speed | m/min | 60 (rope dia. 18 mm) |
| Main hoist speed (low) | m/min | 105 (rope dia. 22/26 mm) |
| Aux hoist speed (low) | m/min | 105 |
| Travel speed | km/h | 1.5 |
| Single line pull | t | 8 t (S-type) / 20 t (MS-type) |
| Engine power | kW | 194-209 kW @ 2000 rpm |
| Transport dimensions | mm | 11717 × 3500 × 3560 |
| Crane mass (basic) | t | 77.8 t |
| Boom luffing angle | deg | 30-80 |
