Product Detials

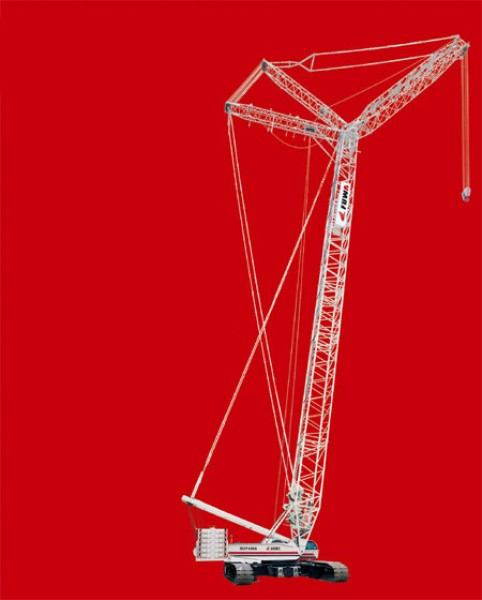

QUY400A
The QUY400A is a high-performance crawler crane featuring modular design, enhanced safety systems, and powerful lifting capabilities.
Category:
FUWA
The QUY400A represents a pinnacle in modern crawler crane engineering, tailored for optimal performance and operational efficiency. It incorporates a fully modular design that ensures efficient maintenance through an innovative layout of hydraulic and electrical systems. The robust construction utilizes high-grade steel for the boom and core machine structures, guaranteeing exceptional durability and powerful lifting capacities. Advanced safety features, including combined moment limiters with real-time machine diagnostics, provide maximum operational security. Additionally, the high-ergonomics lift-cab offers operators superior visibility and comfort, making it the ideal choice for demanding, long-duration lifting projects.
Key Specifications:
- Non-Superlift | Main Boom | Max. Lifting Capacity （t） | 400（5m working radius）
- Fixed Jib - Max. Lifting Capacity（t）: 91.5（18m working radius）
- Luffing Jib - Max. Lifting Capacity（t）: 139.8（14m working radius）
- H Boom - Max. Lifting Capacity （t）: 400（8m working radius）
- H/L Boom - Max. Lifting Capacity （t）: 139（12m working radius）
- Engine - Model: QSM11, Cummins
Non-Superlift | Main Boom | Max. Lifting Capacity （t） | 400（5m working radius）
Length（m）: 24～84
H/L Boom - Max. Lifing Capacity （t）: 180（10m working radius）
Length （m）: 42～108
Fixed Jib - Max. Lifting Capacity（t）: 91.5（18m working radius）
Boom Length（m）: 60～84
Fixed Jib Length（m）: 7
Luffing Jib - Max. Lifting Capacity（t）: 139.8（14m working radius）
Boom Length（m）: 30～72
Luffing Jib（m）: 24～72
Superlift | Superlift Mast | Length（m） | 30
Swing Radius (m): 11、13、15
Superlift Counterweight - Weight（t）: 0～250
Swing Radius （m）: 11，13，15
H Boom - Max. Lifting Capacity （t）: 400（8m working radius）
Length （m）: 30～96
H/L Boom - Max. Lifting Capacity （t）: 139（12m working radius）
Length （m）: 78～126
Luffing Jib - Weight（t）: 154.1（16m working radius）
Boom Length（m）: 36～90
Luffing Jib Length（m）: 30～90
Hook Blocks（Optional）: 15/50/100/400(200×2)
Working Speed - Main/Aux. Hoist Speed （m/min）: 0～145
Boom Derricking Speed（m/min）: (0～35)×2
Luffing Jib Derricking Speed（m/min）: 0～72
Superlift Derricking Speed（m/min）: 0～108
Swing Speed （r/ min）: 0 ～ 1.3
Traveling Speed（km/h）: 0 ～1.2 /0 ～0.4
Crane Weight（Basic Boom, 180T Counterweight, 400Ton Hook）: 325Ton
Main Boom Angle (°) | 30—84 | Ground Bearing Pressure (MPa)（MPa） | 0.136
Luffing jib angle (°) | 15—72 | Main Boom Angle with luffing jib (°) | 66、76、86
Max. Lifting Torque: 5100 (With Superlift)
（t·m）
Engine - Model: QSM11, Cummins
Power （KW）: 298
Revolution（rpm）: 2100
