DTC80

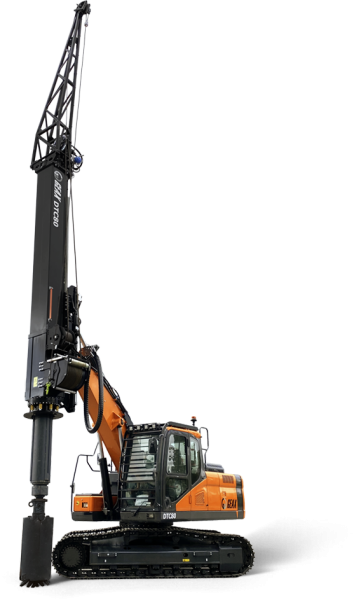

The DTC80 Hydraulic Piling Rig is a robust and compact piling rig, delivering an outstanding power-to-weight ratio for demanding foundation construction.
Category:
GEAX
The DTC80 Hydraulic Piling Rig is a robust and compact piling rig specifically designed to provide outstanding power-to-weight ratio for foundation construction. Engineered to handle demanding ground conditions, this model provides remarkable maneuverability, operational flexibility, and straightforward maintenance, making it an essential asset for challenging deep foundation and piling operations.
Key Specifications:
- Engine power: kW (hp) (97.4 (131))
- Drilling Torque: kNm – lbf ft (76 - 56,050)
- Max pile diameter: mm - in (1,500 - 60)
- Max pile depth: m - ft (30 - 100)
- Total weight (w/o tool): kg - lbs (25,300 - 55,780)
Engine power: kW (hp) (97.4 (131))
Drilling Torque: kNm – lbf ft (76 - 56,050)
Max pile diameter: mm - in (1,500 - 60)
Max pile depth: m - ft (30 - 100)
Min working headroom: mm - ft (7,750 - 25.4)
Main winch line pull: kN - lbf (110 - 24,730)
Aux winch line pull: kN - lbf (50 - 11,240)
Total weight (w/o tool): kg - lbs (25,300 - 55,780)
