Product Detials
EK110

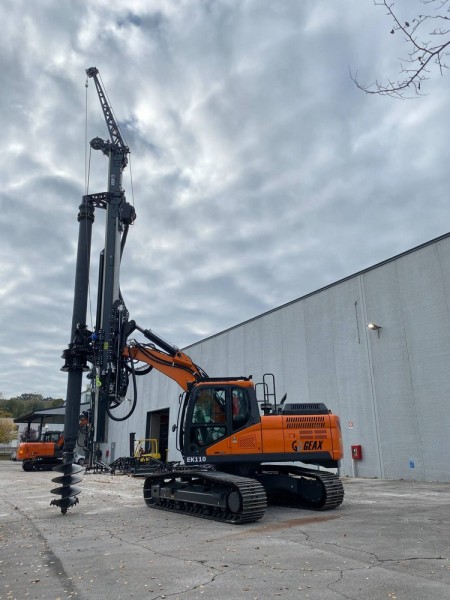

The EK110 Hydraulic Piling Rig is a highly versatile and compact drilling machine, offering exceptional maneuverability and adaptability for multiple drilling modes including Kelly and CFA.
Category:
GEAX
The EK110 Hydraulic Piling Rig features Geax’s unique architecture with a long supporting boom and a sliding mast, enabling maximum tool positioning flexibility. Designed for long reach drilling, low headroom applications, and maximized casing height, it offers proverbial stability and compact dimensions for operations on slopes, uneven terrain, and tight spaces. This highly versatile rig can be easily adapted using modular kits for Kelly drilling, CFA, diaphragm walls, soil mixing, and soil displacement.
Key Specifications:
- Engine Power: 124 kW (166 hp)
- Drilling Torque: 107 kNm (78,920 lbf ft)
- Max Pile Diameter: 1,800 mm (70 in)
- Max Pile Depth: 46 m (150 ft)
- Total Weight (w/o tool): from 28,300 kg (62,400 lbs)
Engine Power: 124 kW (166 hp)
Drilling Torque: 107 kNm (78,920 lbf ft)
Max Pile Diameter: 1,800 mm (70 in)
Max Pile Depth: 46 m (150 ft)
Min Working Headroom: 6,900 mm (22.6 ft)
Main Winch Line Pull: 120 kN (27,000 lbf)
Aux Winch Line Pull: 52 kN (11,690 lbf)
Total Weight (w/o tool): from 28,300 kg (62,400 lbs)
