EK60

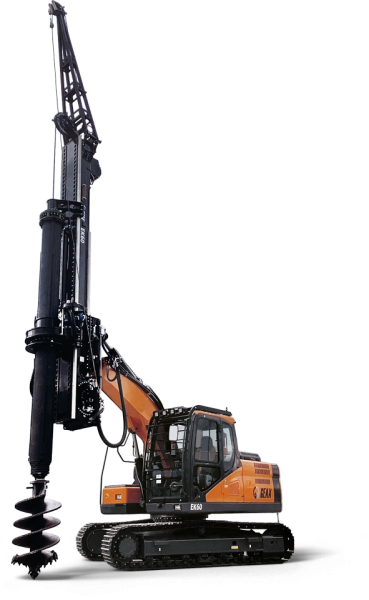

The EK60 Hydraulic Piling Rig is a highly versatile and compact drilling machine, offering exceptional maneuverability and adaptability for multiple drilling modes including Kelly and CFA.
Category:
GEAX
The EK60 Hydraulic Piling Rig features Geax’s unique architecture with a long supporting boom and a sliding mast, enabling maximum tool positioning flexibility. Designed for long reach drilling, low headroom applications, and maximized casing height, it offers proverbial stability and compact dimensions for operations on slopes, uneven terrain, and tight spaces. This highly versatile rig can be easily adapted using modular kits for Kelly drilling, CFA, diaphragm walls, soil mixing, and soil displacement.
Key Specifications:
- Engine power: kW (hp) (86 (115))
- Drilling Torque: kNm – lbf ft (55 - 40,565)
- Max pile diameter: mm - in (1,200 - 48)
- Max pile depth: m - ft (28 - 92)
- Total weight (w/o tool): kg - lbs (21,000 - 46,30)
Engine power: kW (hp) (86 (115))
Drilling Torque: kNm – lbf ft (55 - 40,565)
Max pile diameter: mm - in (1,200 - 48)
Max pile depth: m - ft (28 - 92)
Min working headroom: mm - ft (5,300 - 17.4)
Main winch line pull: kN - lbf (82 - 18,440)
Aux winch line pull: kN - lbf (33 - 7,420)
Total weight (w/o tool): kg - lbs (21,000 - 46,30)
