EK90

EK90

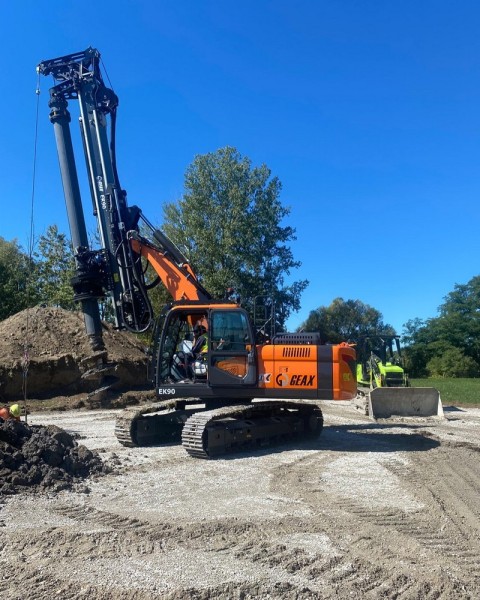

The EK90 Hydraulic Piling Rig is a highly versatile and compact drilling machine, offering exceptional maneuverability and adaptability for multiple drilling modes including Kelly and CFA.

Category: GEAX
Get a quote
  • Description
  • Specs
  • Technical Data
The EK90 Hydraulic Piling Rig features Geax’s unique architecture with a long supporting boom and a sliding mast, enabling maximum tool positioning flexibility. Designed for long reach drilling, low headroom applications, and maximized casing height, it offers proverbial stability and compact dimensions for operations on slopes, uneven terrain, and tight spaces. This highly versatile rig can be easily adapted using modular kits for Kelly drilling, CFA, diaphragm walls, soil mixing, and soil displacement.
Key Specifications: - Engine Power: 97.4 kW (131 hp) - Drilling Torque: 87 kNm (64,170 lbf ft) - Max Pile Diameter: 1,500 mm (60 in) - Max Pile Depth: 30 m (100 ft) - Total Weight (w/o tool): Not specified (Not specified)
Engine Power: 97.4 kW (131 hp) Drilling Torque: 87 kNm (64,170 lbf ft) Max Pile Diameter: 1,500 mm (60 in) Max Pile Depth: 30 m (100 ft) Min Working Headroom: 6,900 mm (22.6 ft) Main Winch Line Pull: 110 kN (24,730 lbf) Aux Winch Line Pull: 50 kN (11,240 lbf) Total Weight (w/o tool): Not specified (Not specified)
