Product Detials

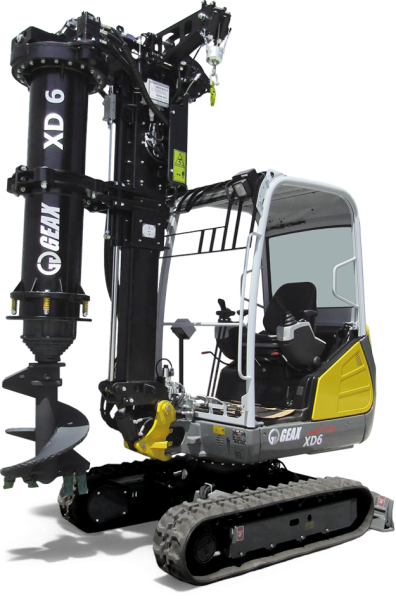

XD6
The XD6 Hydraulic Piling Rig is an ultra-compact piling rig, specifically engineered for extremely tight spaces and low-headroom environments.
Category:
GEAX
The XD6 Hydraulic Piling Rig represents the world's most compact class of hydraulic piling rigs. Explicitly engineered for operations in exceedingly tight spaces and areas with severely limited headroom, this rig can access job sites that standard machines simply cannot reach. Despite its incredibly small footprint, it delivers reliable drilling performance without compromising on essential operational safety and efficiency.
Key Specifications:
- Engine power: kW (hp) (13.4 (18.2))
- Drilling Torque: kNm - lbf ft (6 - 4,420)
- Max pile diameter: mm - in (500 - 20)
- Max pile depth: m - ft (11.5 - 37.7)
Engine power: kW (hp) (13.4 (18.2))
Drilling Torque: kNm - lbf ft (6 - 4,420)
Max pile diameter: mm - in (500 - 20)
Max pile depth: m - ft (11.5 - 37.7)
Min working headroom: mm - ft (2,600 - 8.5)
Main winch line pull: kN - lbf (12 - 2,700)
Aux winch line pull: kN - lbf (7.5 - 1,680)
