Product Detials

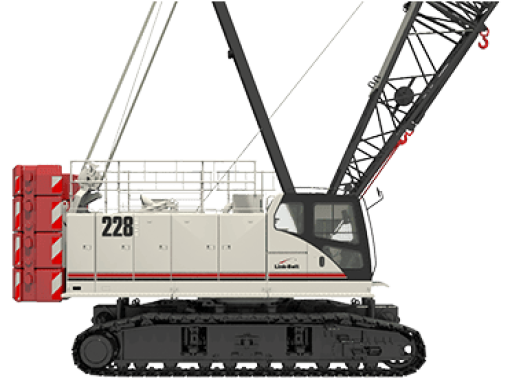

Lattice Crawler Crane
Base Rating: 130 USt @ 12 ft, Boom Lengths: 45–235 ft (w/ 10 ft incr.), Fixed Jib Lengths: 30–75 ft (w/ 15 ft incr.), Fixed Jib Offsets: 5°, 15°, 25°, Maximum Tip Height (Fixed Jib): 281 ft, Engine: Cummins QSB 6.7 Tier 4 Final, Horsepower: 270 hp @ 2,000 rpm, Maximum Hoist Pull / Speed: 44,565 lbs / 348 ft/min, Counterweight Option: 79,650 lbs Upper + 26,500 lbs Lower, Working Weight: 235,041 lbs, Main Transport Load: 74,225 lbs without side frames / 119,541 lbs with side frames
